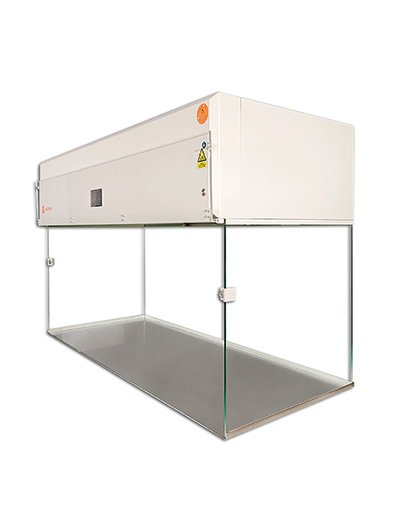

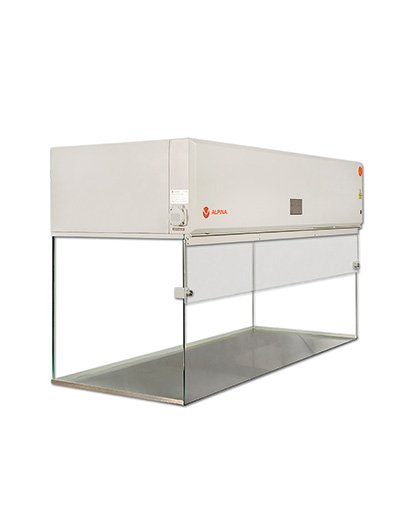

PCR Laminar Flow Cabinet 1600
Additional information
| Brand |
|---|
$4,299.00
Ready for delivery in 2–3 weeks
| Parameter | Specification |
|---|---|
| Model | PCR1600 |
| Type | Vertical Laminar Flow Cabinet (Class I – Product Protection, PCR Application) |
| Application | PCR sample preparation and molecular biology; not for hazardous materials |
| External Dimensions (W × D × H) | 1624 × 633 × 780 mm |
| Internal Dimensions (W × D × H) | 1588 × 625 × 500 mm |
| Adjustable Airflow Velocity | 0.25 – 0.50 m/s |
| Noise Level (PN-EN ISO 11201) | < 55 dB |
| Illumination Intensity | > 1400 lux |
| Power Consumption (with lighting) | 62 W |
| Power Consumption (without lighting) | 39 W |
| UV Lamps | 3 pcs (15 W each) — includes 2 for continuous airflow sterilization |
| Electrical Outlets (on housing) | 2 pcs |
| Nominal Power | 386 W |
| Weight | 127 kg |
| HEPA Filter Efficiency | > 99.995% for MPPS (H14) |
| Filtration System | Two-stage: Pre-filter (G3) + HEPA H14 |
| Construction Material (Interior & Exterior) | Acid-resistant stainless steel (AISI 304) |
| Side Panels | 6 mm safety glass |
| Supply Voltage | 230 V / 50 Hz |
| Installation Type | Benchtop model (optional stand on lockable wheels) |
| Warranty | 24 months |
-
Class I Laminar Flow Cabinet (Product Protection Only)
Provides sterile, particle-free working conditions — ideal for PCR, DNA/RNA amplification, and molecular diagnostics. -
Three UV-C Germicidal Lamps (15 W Each)
Includes two UV lamps for continuous airflow sterilization and one for surface disinfection between procedures. -
Automatic Filter Wear Compensation
Maintains a constant and safe airflow velocity within the chamber to ensure long-term stability and efficiency. -
EC Fan Technology
Electronically controlled fans deliver smooth, quiet operation (<55 dB) and energy savings of up to 76%. -
Dual Filtration System
Two-stage filtration using a G3 pre-filter and a HEPA H14 main filter (>99.995% MPPS efficiency), ensuring ISO Class 5 clean air. -
Energy-Efficient LED Lighting
Bright and even illumination (>1400 lux) of the workspace with minimal energy use. -
EASYTOUCH Control Panel
Intuitive touch-screen interface operable even with gloves — all major functions accessed via dedicated buttons. -
Multilingual Menu
Interface available in Polish, English, German, French, Spanish, Italian, Greek, and Turkish. -
Integrated Hour Counter
Tracks operating hours and UV lamp runtime for maintenance and performance monitoring. -
Internal Monitoring System
Built-in diagnostics alert the user to any operational errors or filter efficiency issues. -
Durable Stainless-Steel Construction
Acid-resistant AISI 304 stainless-steel chamber with 6 mm safety glass side panels for easy cleaning and hygiene. -
Compact Benchtop Design
Space-efficient configuration suitable for any standard laboratory bench. -
Optional Accessories
Stainless-steel stand with lockable wheels, cable pass-through ports, and gas/air/vacuum valves available on request.
