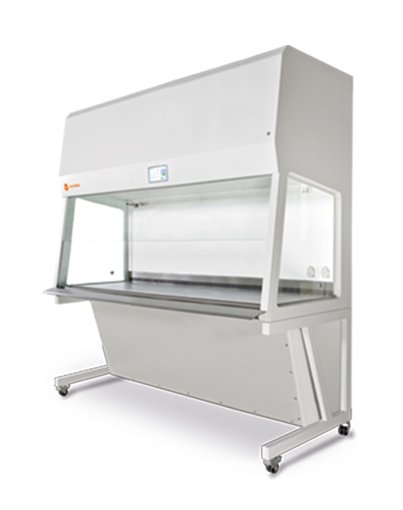

Laminar Flow Cabinet A2 BIO 160 CYTO
Additional information
| Brand |
|---|
$11,999.00
Ready for delivery in 2–3 weeks
| Parameter | Specification |
|---|---|
| Model | BIO160 CYTO A2 |
| Application | Handling cytostatics and hazardous pharmaceutical materials |
| Class | II (according to PN-EN 12469:2002 and DIN 12980:2016-10) |
| Airflow Type | Vertical laminar, 30/70% recirculation |
| Air Velocity (adjustable) | 0.25 – 0.50 m/s |
| HEPA Filters | 3 pcs (Pre-filter + Main + Exhaust), H14 > 99.995% for MPPS |
| Fans | 4 pcs, EC electronically commutated |
| Noise Level | < 56 dB (PN-EN ISO 11201) |
| Illumination | LED > 1600 lux |
| UV Lamp Power | 30 W |
| Power Consumption | 49 W (no light) / 170 W (with light) |
| Nominal Power | 989 W |
| Internal Dimensions (W × D × H) | 1561 × 645 × 660 mm |
| External Dimensions (W × D × H) | 1640 × 790 × 2094 mm |
| Working Height (window open) | 250 mm |
| Max. Front Window Opening | 540 mm |
| Electrical Outlets (inside) | 4 pcs |
| Weight | 385 kg |
| Supply Voltage | 230 V / 50 Hz (single-phase) |
| Control Panel | 7″ touchscreen (languages: PL, EN, DE, FR, IT, ES, TR, RU) |
| Construction Material (interior) | Stainless steel 1.4301 |
| Construction Material (exterior) | Powder-coated steel DC01, RAL 7045 |
| Front Glass | 6 mm safety glass, 8° inclination |
| Optional Accessories | Gas/vacuum/air valves; USB/RS/RJ/HDMI ports; stainless rods; 19″ monitor; adjustable stand (83–103 cm); ventilation connection |
| Certifications | TÜV PN-EN 12469:2002, DIN 12980, PN-EN 61010-1, CE, ISO 9001, ISO 17025 |
| Warranty | 36 months |
-
Specially Designed for Cytotoxic Drug Handling
Certified according to DIN 12980 and PN-EN 12469 standards for safe preparation of cytostatics and hazardous compounds. -
Triple HEPA Filtration (H14)
Includes pre-filter, main, and exhaust filters with > 99.995% efficiency for maximum operator, product, and environmental protection. -
Four EC Fans for Stable Airflow
Electronically controlled fans ensure consistent laminar flow, low vibration, and quiet operation (< 56 dB). -
Smart Airflow Monitoring
Dual-sensor system with temperature compensation monitors both laminar and inflow air velocities in real time. -
Automatic Filter Wear Compensation
Maintains constant airflow velocity (0.25–0.50 m/s) and system safety over time. -
7″ Multilingual Touchscreen Panel
Simple and intuitive interface available in multiple languages (PL, EN, DE, FR, IT, ES, TR, RU). -
Energy-Saving Stand-by Mode
Reduces power consumption while maintaining sterile air circulation. -
UV-C Sterilization System
30 W germicidal lamp with programmable timer (00:10–09:50 h) for safe and effective disinfection between operations. -
High-Intensity LED Lighting
1600 lux shadow-free illumination enhances visibility and reduces eye strain.
-
Ergonomic and Safe Design
6 mm tempered glass (8° tilt), detachable stainless-steel worktop, and full-length armrest improve comfort and safety. -
Large 160 cm Working Area
Spacious chamber allows simultaneous work by multiple operators and accommodates large laboratory setups. -
Durable Construction
Interior made of stainless steel 1.4301; exterior coated in RAL 7045 powder paint for easy cleaning and long-term durability. -
Easy Cleaning and Maintenance Mode
Automatic front glass lowering below work surface for safe decontamination and cleaning. -
Certified Quality and Safety
TÜV-certified microbiological and electrical safety; compliant with CE, ISO 9001, and ISO 17025 quality standards. -
Optional Customization
Additional ports (USB, RS, RJ, HDMI), valves (gas, air, vacuum), monitor mount, adjustable stand, or ventilation connection available.
